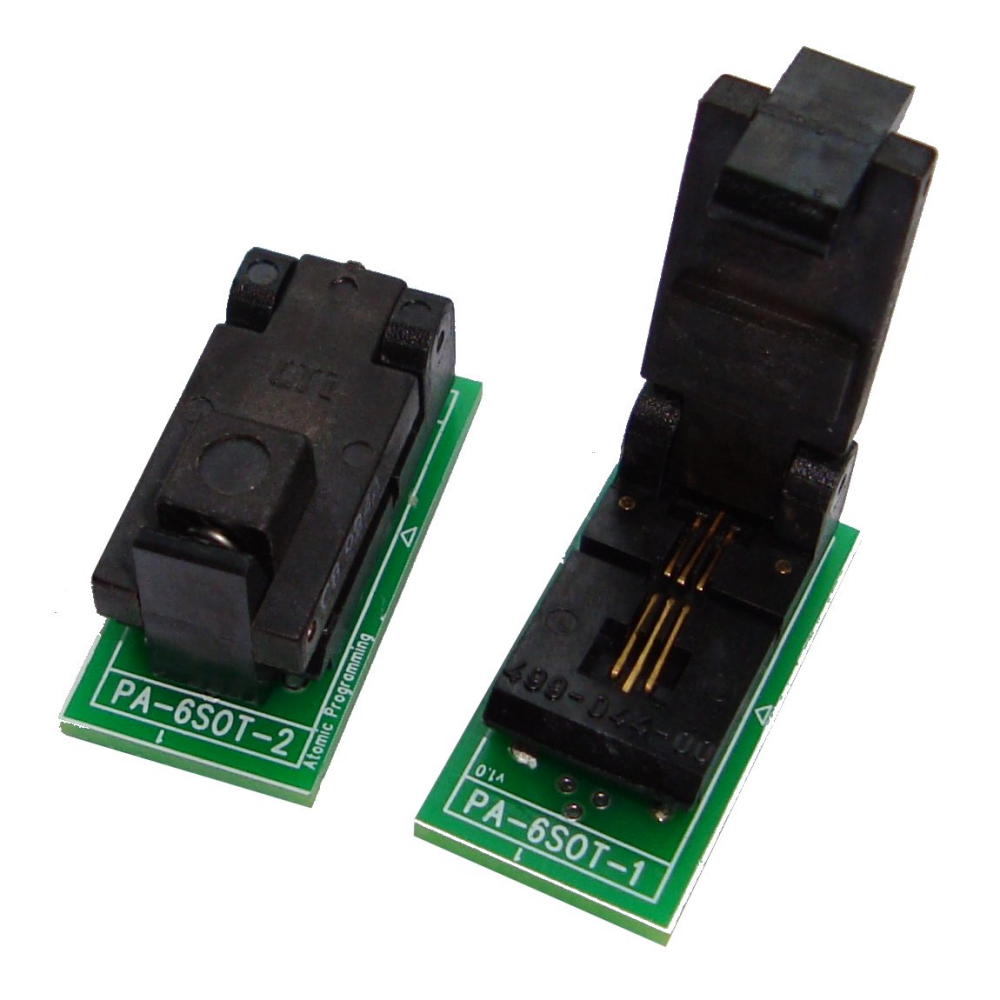

Clam-shell programming & test package adapters for 5 & 6-pin 0.037" pitch SOT-23 package devices.
Maps to a standard 6 or 8-pin 0.1" (2.54mm) pitch 0.3" wide Dual In-line Pin-out (DIP)
The Zero-Insertion Force (ZIF) socket allows easy insertion and removal of devices.
The adapters are for use on any programming or test equipment.
SOT23 Options:
| PA-6SOT-1 | 1-1 Mapping to a 6-pin DIP pin-out |
| PA-6SOT-2 | Suitable for mapping 5-pin Microchip 24AA08 & Atmel 24C0xB to the standard 8-pin DIP pin-out |
| PA-6SOT-3 | Suitable for mapping 5-pin Microchip 24AA00 to the standard 8-pin DIP pin-out |
| PA-6SOT-4 | Suitable for mapping 6-pin Microchip 93AA66C to the standard 8-pin DIP pin-out |
| PA-6SOT-5 | Suitable for mapping 6-pin Microchip PIC10F20x to the standard 8-pin DIP pin-out |
Notes
- The adapters use an 499 series Clam-shell Zero-Insertion Force (ZIF) socket from Wells (Socket code: 499-P44-20)
- It has a life cycle of 10,000 insertion cycles (minimum) under normal use.
- Operating temperature range: -55°C ~ +155°C
- Printed circuit board material: RF4 with 1 Once copper with a Nickel/Gold RoHS compliant finish
- Adapter is Lead-free and RoHS compliant
