PA-6SOT-2
  • PA-6SOT-2
  • PA-6SOT-2

PA-6SOT-2

£70.00

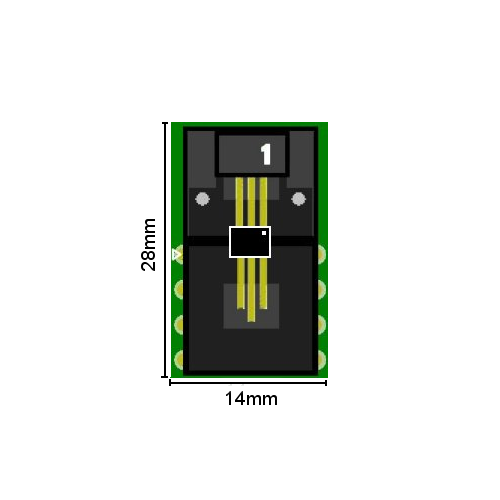

Universal test package adapter for 5-pin Microchip 24AA08 & Atmel 24C0xB Serial EEPROM devices in a SOT-23 package

Maps to a standard 0.1” (2.54mm) pitch 0.3” wide Dual In-line Pin-out (DIP)

SKU : PA-6SOT-2

Universal test package adapter for 5-pin Microchip 24AA08 & Atmel 24C0xB Serial EEPROM devices in a SOT-23 package

Maps to a standard 0.1” (2.54mm) pitch 0.3” wide Dual In-line Pin-out (DIP)

The Clam-shell Zero-Insertion Force (ZIF) socket allows easy insertion and removal of devices.

The adapter is for use on any programming or test equipment.

Example Devices:

For mapping 5-pin Microchip 24AA08 & Atmel 24C0xB Serial EEPROM devices to the standard 8-pin DIP pin-out

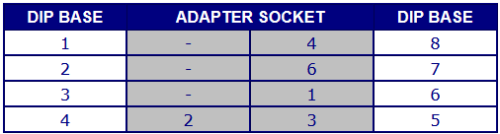

Pin Mapping:



Notes

  1. The adapter uses an 499 series Clam-shell Zero-Insertion Force (ZIF) socket from Wells (Socket code: 499-P44-20)
  2. It has a life cycle of 10,000 insertion cycles (minimum) under normal use.
  3. Operating temperature range: -55°C ~ +155°C
  4. Printed circuit board material: RF4 with 1 Once copper with a Nickel/Gold RoHS compliant finish
  5. Adapter is Lead-free and RoHS compliant
